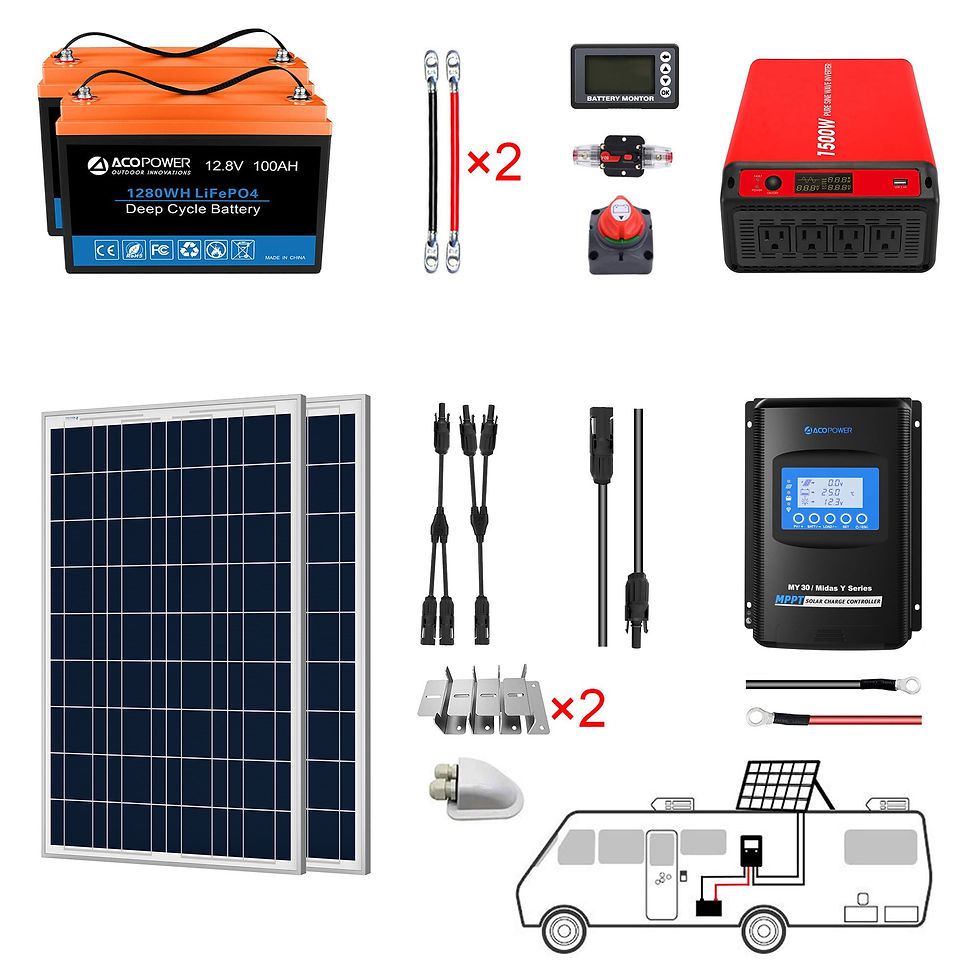

ACOPOWER Lithium Battery Poly Solar Power w/ Battery & Inverter 12V Off Grid Kit

ACOPOWER Lithium Battery Poly Solar Power w/ Battery & Inverter 12V Off Grid Kit

SKU: 84a91288
PriceFrom $1,895.60

ACOPOWER Lithium Battery Solar Power Complete System comes with everything you need to start Producing Free, Clean Power from the Sun! Perfect for RV's, Boats, Cabins and Back-up Power! Solar Powered

specification:
12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity:1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb

12V 200Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity:2560WH
Depth of Discharge (DoD): 100%
Standard charge current: 50A
Max continuous charge current: 100A
Max continuous discharge current: 200A
dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
Approx. Weight: 48.94lb
100W Poly Solar Panel
Nominal for 12V battery charger
Peak Power (Pmax):100W
Peak Circuit Voltage(Voc):22V
Max Power Voltage(Vmp):17.48V
Short Circuit Current(Isc):6.21A
Max Power Current(Imp):5.72A
Weight:17.6lb
Dimension:40.2*26.4*1.4 Inch
Application Class: Class A
1500W Pure Sine Wave Inverter
Continuous output 1500W
Surge Power 3000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protection
Weight: 7.79lb
Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

3000W Pure Sine Wave Inverter
Continuous output 3000W
Surge Power 6000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protection
Weight: 12.1lb
Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch
MPPT Solar Charge Controller 30A
Rated charge current: 30A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/390W,24V/780W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

MPPT Solar Charge Controller 40A
Rated charge current: 40A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/520W,24V/1040W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

MPPT Solar Charge Controller 50A
Rated charge current: 50A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

MPPT Solar Charge Controller 60A
Rated charge current: 60A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
Compatible with Various Deep Cycle Battery options:Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

SKU Battery Solar Panel Inverter Charge Controller Monitor Switch Fuse Z Bracket Battery Cable All necessary Cables HYL200AH-P200W 2pcs 100Ah 2pcs 100W 1.5kw 30A 1pc 1pc 60A 2 sets 2 Pairs Y HYL200AH-P300W 2pcs 100Ah 3pcs 100W 1.5kw 30A 1pc 1pc 60A 3 sets 2 Pairs Y HYL200AH-P400W 2pcs 100Ah 4pcs 100W 1.5kw 40A 1pc 1pc 60A 4 sets 2 Pairs Y HYL200AH-P500W 2pcs 100Ah 5pcs 100W 1.5kw 40A 1pc 1pc 60A 5 sets 2 Pairs Y HYL200AH-P600W 2pcs 100Ah 6pcs 100W 1.5kw 50A 1pc 1pc 60A 6 sets 2 Pairs Y HYL200AH-P800W 2pcs 100Ah 8pcs 100W 1.5kw 60A 1pc 1pc
60A 8 sets 2 Pairs Y HYL300AH-P200W 3pcs 100Ah 2pcs 100W 1.5kw 30A 1pc 1pc 60A 2 sets 3 Pairs Y HYL300AH-P300W 3pcs 100Ah 3pcs 100W 1.5kw 30A 1pc 1pc 60A 3 sets 3 Pairs Y HYL300AH-P400W 3pcs 100Ah 4pcs 100W 1.5kw 40A 1pc 1pc 60A 4 sets 3 Pairs Y HYL300AH-P500W 3pcs 100Ah 5pcs 100W 1.5kw 40A 1pc 1pc 60A 5 sets 3 Pairs Y HYL300AH-P600W 3pcs 100Ah 6pcs 100W 1.5kw 50A 1pc 1pc 60A 6 sets 3 Pairs Y HYL300AH-M800W 3pcs 100Ah 8pcs 100W 1.5kw 60A 1pc 1pc 60A 8 sets 3 Pairs Y HYL400AH-P400W 2pcs 200Ah 4pcs 100W 3kw 40A 1pc 1pc 60A 4 sets 2 Pairs Y HYL400AH-P500W 2pcs 200Ah 5pcs 100W 3kw 40A 1pc 1pc 60A 5 sets 2 Pairs Y HYL400AH-P600W 2pcs 200Ah 6pcs 100W 3kw 50A 1pc 1pc 60A 6 sets 2 Pairs Y HYL400AH-P800W 2pcs 200Ah 8pcs 100W 3kw 60A 1pc 1pc 60A 8 sets 2 Pairs Y HYL600AH-P600W 3pcs 200Ah 6pcs 100W 3kw 50A 1 1 60A 6 sets 3 Pairs Y HYL600AH-P800W 3pcs 200Ah 8pcs 100W 3kw 60A 1 1 60A 8 sets 3 Pairs Y
